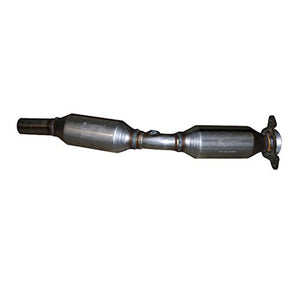

Catalytic Converter Direct fit series by BLUEFLOW. If your car needs replacement, install one that will get you through the smog check. This converter is part of the exhaust header/manifold assembly, and it will directly replace the factory unit, with little or no fabrication required. The Direct Fit Catalytic Converter with Header is available in Pre-OBD II and OBD II configurations.

Product Details

• Catalytic Converter Body Material:  Stainless steel
• Air Tube Pre-Installed: YES
• Series:  Standard
• Gasket Or Seal Included:  Yes
• Heat Shield Material:  Stainless Steel
• Substrate Material:  Ceramic
• Federal Emissions compliant design.

Features

• Constructed to meet your vehicle’s specific emissions requirements
• Direct fit design
• Features the right loading of precious metals & proprietary washcoat technology
• Stainless steel body and pipe heat shields
• Easy installation without cutting or welding
• Covered by 5 years/50,000 miles emissions and structural warranty

Catalytic Converter Replacement Guide

INTERCHANGES  NUMBERS:   45-45625 Z7 , 45-45625 Z7Tool You’ll need
1.Car jack;Penetrating Lubricant such as WD-40;Socket wrench or ratchet set;Breaker bar;Screwdrivers;Hammer;Spare 2-inch bolts;Spare lock washers
2. New catalytic converter made for your vehicle
Installation:
Step 1 Jack Up the Vehicle.Use your car jack to jack up the vehicle to a height where you can place the jack stands under your vehicle.
Step 2 Loosen the Bolts on the Catalytic Converter.
Use penetrating lubricant to spray on the bolts that attach the catalytic converter and heat shield to your vehicle.
Step 3 Remove the Heat Shield.If the original catalytic converter has heat shield.
Step 4 Remove the Old Catalytic Converter.remove the bolts that hold the catalytic converter in place.If it’s hard to remove ,please use breaker bar to help
Step 5 Install the new Catalytic Converter.carefully aligned the new catalytic converter and secure it with the bolts.
Step 6 Replace the Heat Shield.reattach it using the screws or bolts that you removed earlier.
Step 7 Check for Exhaust Leaks
If you do observe any exhaust leaks, it is probably a result of a bolt that was not completely tightened. If there is an exhaust leak, remove the heat shield and apply more torque to the bolts that hold the catalytic converter in place.

Vehicle Applications for this product

• 2003-2008 TOYOTA COROLLA 1.8L DIRECT FIT CATALYTIC CONVERTER
• 2003-2008 PONTIAC VIBE 1.8L DIRECT FIT CATALYTIC CONVERTER
• 2003-2008 TOYOTA MATRIX 1.8L DIRECT FIT CATALYTIC CONVERTER
